Electrical Characteristics

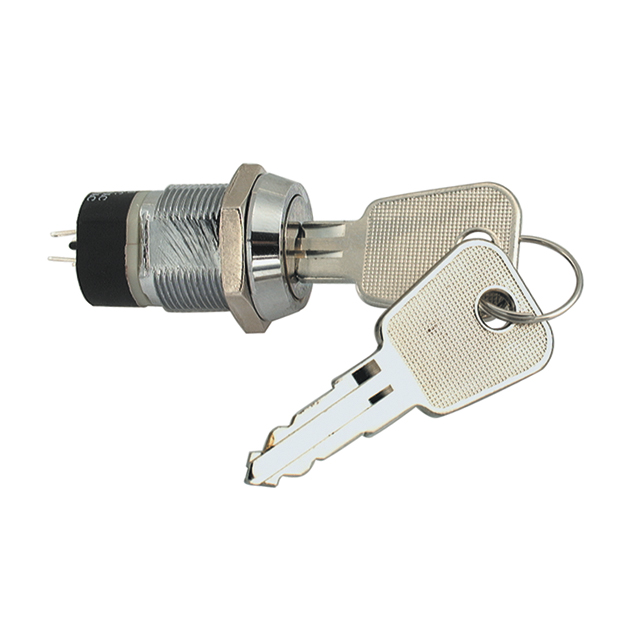

Descriptions
·Zinc alloy die cast housing and cylinder
·Bright chrome plated standard
·5 disc tumbler mechanism
·Reversible double-bitted brass keys, nickel plated
·Silver plated contacts and terminals
·Key withdrawal in both positions
·2 position (off-on) 4 terminals (2NO 2NC)
·Hex nut or speed clip mounted
·All keyed alike or many combinations available
Specifications
·Rating: 4A 125VAC / 2A 250VAC
·Contact resistance: 10mΩ Max.
·Insulation resistance: 500MΩ Min. at 500VDC
·Dielectric strength: 1500VAC for 1 minute
