Electrical Characteristics
Specifications
·Circuit: SPST
·Switch function: On-Off
·Rating: 16A 125VAC / 10A 250VAC
·Contact resistance: 50mΩ Max.
·Insulation resistance: l00MΩ Min. at 500VDC
·Withstand voltage: 1500VAC for 1 minute
·Operating temperature: -25°C to +85°C
Materials

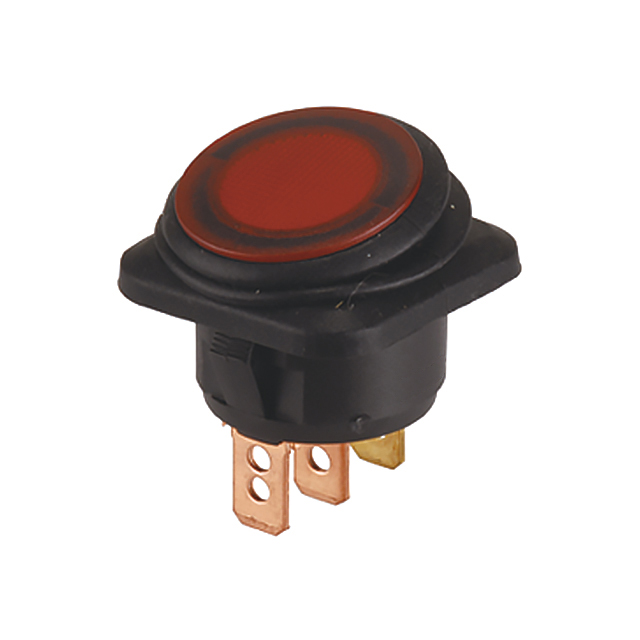

·Frame: Black, nylon 66 (94-V2)
·Actuator: Red, PC clear (94-V2)
·Waterproof rubber: Black, silicone
·Terminals 1,2: Copper alloy, silver plated
·Terminal 3: Brass plated
