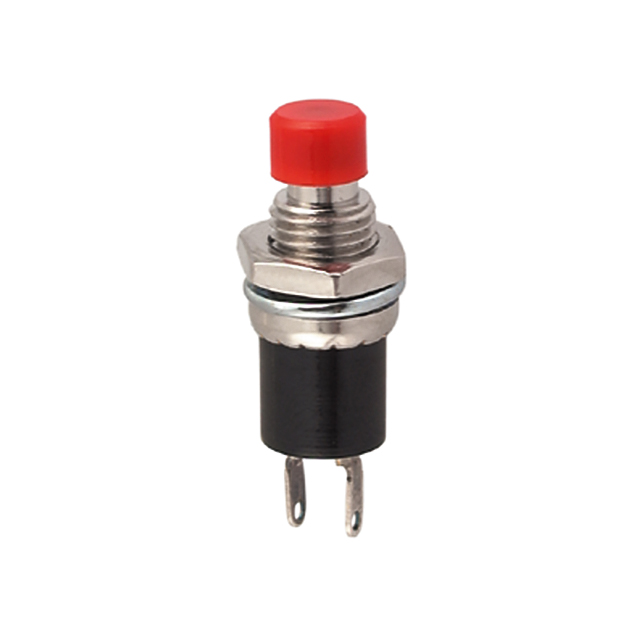

Mini pushbutton switch
Open type
125V 1A
Unit price (USD)
Quantity Price
5+ 1.1538
20+ 0.6593
100+ 0.3846
200+ 0.3205
Specification :
Color
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Overview

Pushbutton Switch – Momentary or Latching Control
Pushbutton switches activate circuits with a press, available in momentary or latching types. Used in industrial equipment, electronics, and reset circuits, they offer tactile feedback and options like illumination, waterproofing, and anti-vandal designs.

Specifications

·Switch function: Momentary / NO / Off-(On)
·Current rating: 1A
·Voltage rating: 125VAC
·Contact resistance: 20mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 1000VAC for 1 minute
·Actuator shape: Round
·Mounting type: Panel mount
·Termination: Solder
