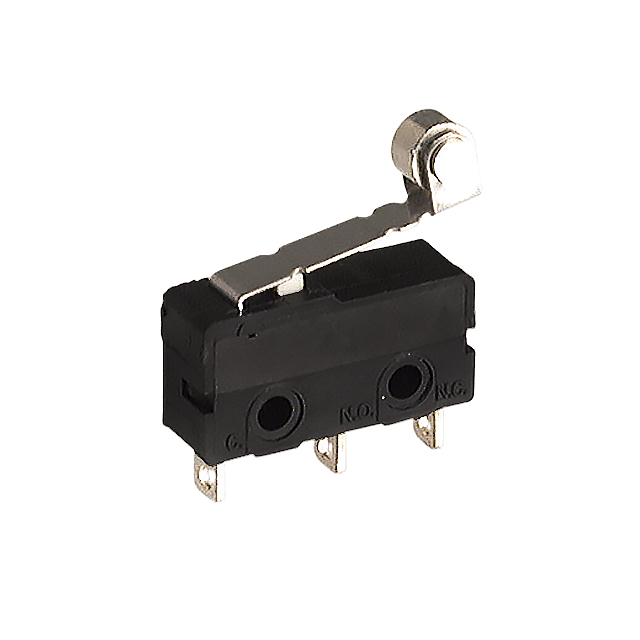

Mini micro switch (SPDT) on-on 45gf
125V 3A (250V 3A) W/approval
Price per each (USD)
Quantity Price
5+ 1.1538
20+ 0.6593
100+ 0.3846
200+ 0.3205
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Specifications

·Circuit: SPDT
·Switch fucntion: On-On
·Rating: 3A 125VAC / 3A 250VAC
·Contact resistance: 50mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 1000VAC for 1 minute
·Operating force: 45±20gf
·Operating temperature: -25°C to +85°C
·Soldering temperature: 380°C Max. for 3 seconds
·Ambient humidity used: 85% RH Max.
·Mechanical life: 1,000,000 cycles
·Electrical life: 10,000 cycles

Materials

·Upper housing: PBT, black
·Lower housing: PBT, black
·Button: PBT, black
·Spring: SUS304
·Terminals: C2680
·Contact: Silver alloy
·Change plate: C5210
·Lever: SUS301
