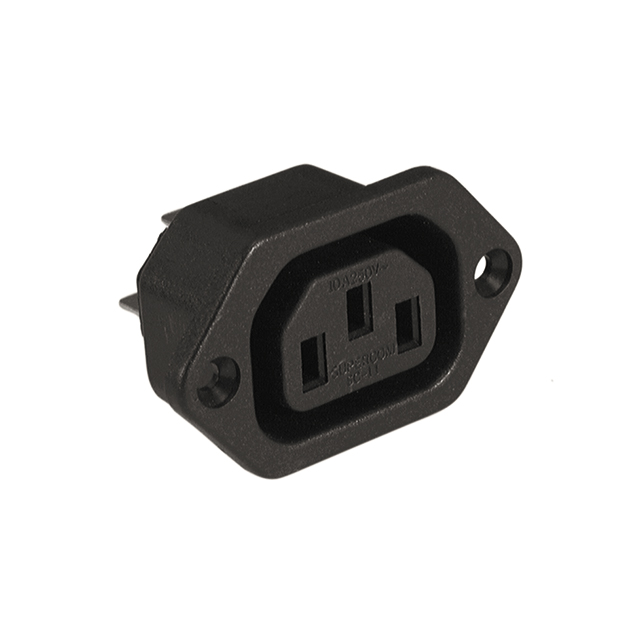

Panel mount AC socket
Terminal 4.8mm
W/approval
  • Item No.:K2414
  • Product Range : AC Socket
  • Approval:
Price per each (USD)
Quantity Price
5+ 1.0192
20+ 0.5824
100+ 0.3397
200+ 0.2831
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Specifications

·Gender: Female
·Current rating: 10A
·Voltage rating: 250VAC
·Mounting: Panel mount
·Body orientation: Straight
·Termination: Quick connect
·Faston terminals: 4.8 x 0.8mm
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 2000VAC for 1 minute

Materials

·Body: Nylon#66
·Terminal: Bsp1-1/2H, t=0.8, Sn-plated
