Electrical Characteristics
Features

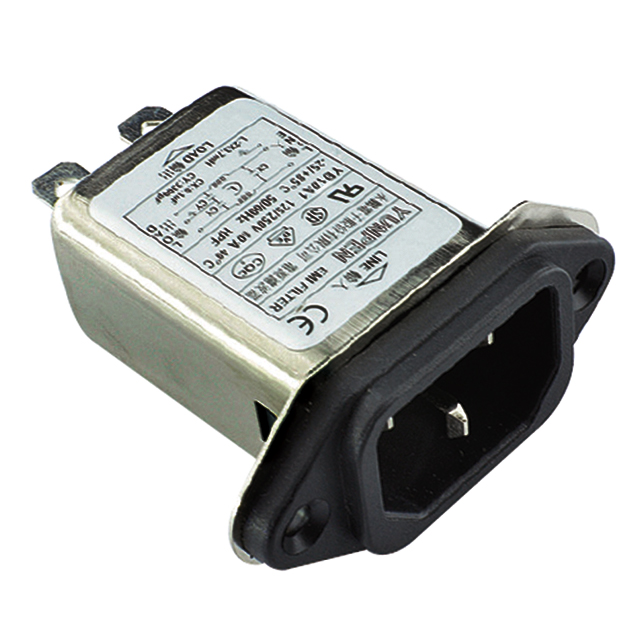

·The K2420 series filter integrates an IEC inlet and filter with excellent noise suppression performance and compact size.
·The rated current can be offered up to 15 amps.
·Various output selections such as fast-on terminal.
·Low leakage current version upon requested.
·Custom-specific versions are available on request.
Specifications
·Current rating: 10A
·Voltage rating: 125VAC / 250VAC
·Operating frequency: 50/60Hz
·Hipot rating (line-to-line): 1450VDC
·Hipot rating (line-to-ground): 1800VDC
·Insulation resistance: 100MΩ Min. at 250VDC
·Leakage current (eachline to ground): 0.8mA Max. 250VAC 50Hz
·Operating temperature: -25°C to +85°C
·Output connections: Fast-on terminal
