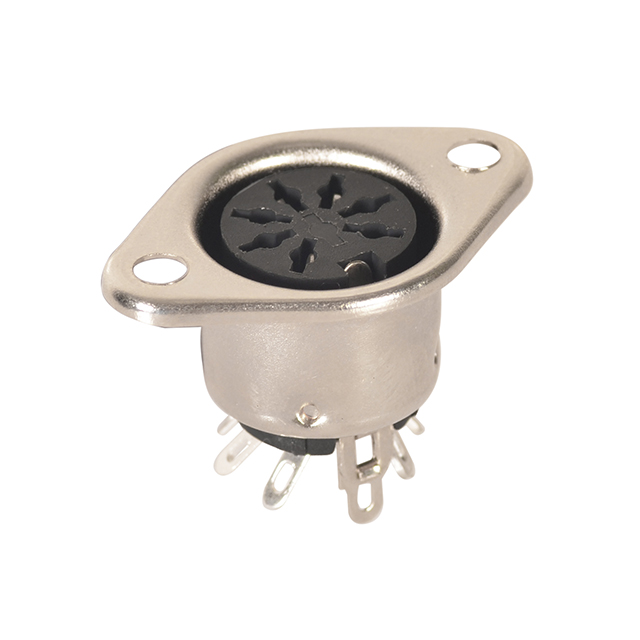

DIN Socket – Female DIN Connector
DIN sockets are female connectors for 3-, 4-, 5-, 6-, 7-, or 8-pin DIN plugs, with keyed orientation for secure mating. Available in panel-mount, cable-mount, and PCB-mount designs, they are used in legacy audio systems, MIDI devices, and test benches for reliable multi-signal connections.
Specifications
·Gender: Female
·No. of contacts: 7
·Orientation: Straight
·Contact resistance: 20mΩ Max.
·Insulation resistance: 300MΩ Min. at 500VDC Min.
·Mounting type: Panel mount
·Contact termination: Solder
Materials
·Socket case: SPCC t=0.40, nickel plated
·Earth terminal: Phosphor bronze, Sn plated
·Housing: PBT
·Contant terminal: Copper, Sn plated
