Electrical Characteristics

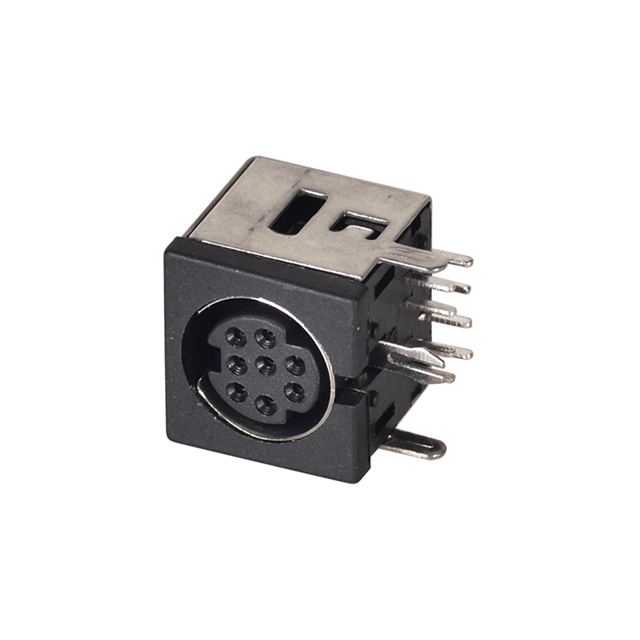

Specifications
·Gender: Female
·No. of contacts: 8
·Rating: 1A 100V AC / 2A 12V DC
·Orientation: Right angle
·Contact resistance: 30mΩ Max.
·Insulation resistance: 50MΩ Min. at 250VDC
·Withstand voltage: 250VAC R.M.S. for 1 minute
·Operating temperature: -40°C to +85°C
·Mounting type: PCB mount
·Termination: Solder
Materials
·Housing: PBT 4815, UL-94V0 black
·Coat: SPCC t=0.4, Cu/Sn plated
·Contact foot: C5191 t=0.4, Ag plated
·Ground contact: C2680 t=0.3, Cu/Sn plated
