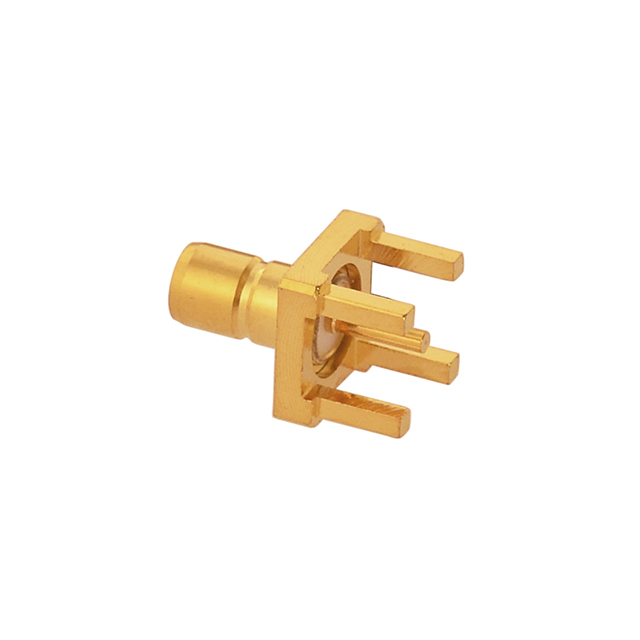

SMB Connector – Quick Snap-On RF Connector
SMB connectors are compact RF coaxial connectors with a snap-on coupling for fast, reliable connections. Ideal for telecom, GPS, and test instruments, they perform up to 4 GHz with low VSWR. Their small size makes them perfect for space-limited designs.
Specifications
·Gender: Female
·Connector type: SMB
·Impedance: 50Ω
·Body orientation: Straight
·Mounting type: PCB mount
·Frequency range: 0-4GHz
·Voltage rating: 250VAC
·Contact resistance: 6.0mΩ Max.
·Insulation resistance: 1000MΩ Min. at 500VDC
·Withstand voltage: 750VAC for 1 minute
Materials
·Body: Brass, gold plated
·Insulator: Teflon
·Pin: Brass, gold plated
