Electrical Characteristics
Specifications
·Gender: Male - male

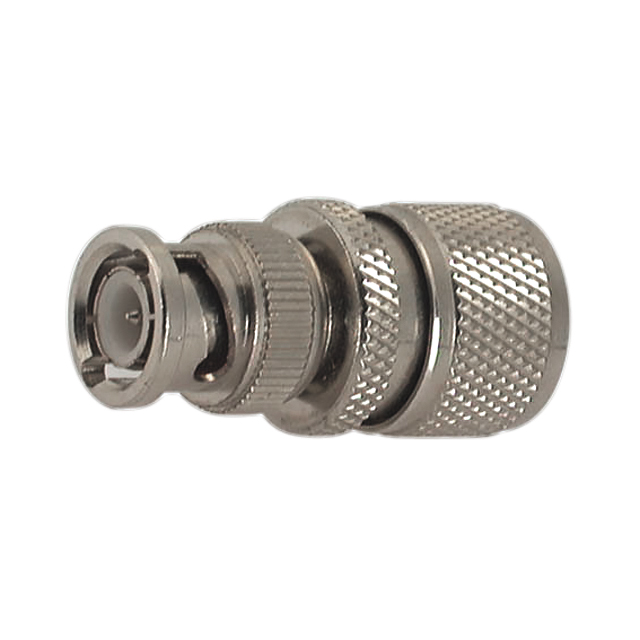

·Adapter type: BNC to UHF
·Adapter type A: BNC male
·Adapter type B: UHF male
·Impedance: 50Ω
·Body orientation: Straight
·Voltage rating: 500VAC
·Contact resistance: 3.0mΩ Max.
·Insulation resistance: 5000MΩ Min. at 500VDC
·Withstand voltage: 1500VAC for 1 minute
Materials
·Body: Brass, nickel plated
·Pin: Brass, nickel plated
·Insulator: Delrin
·Washer: Brass
·Spring: Steel
·Washer: Steel
·Gasket: Rubber
