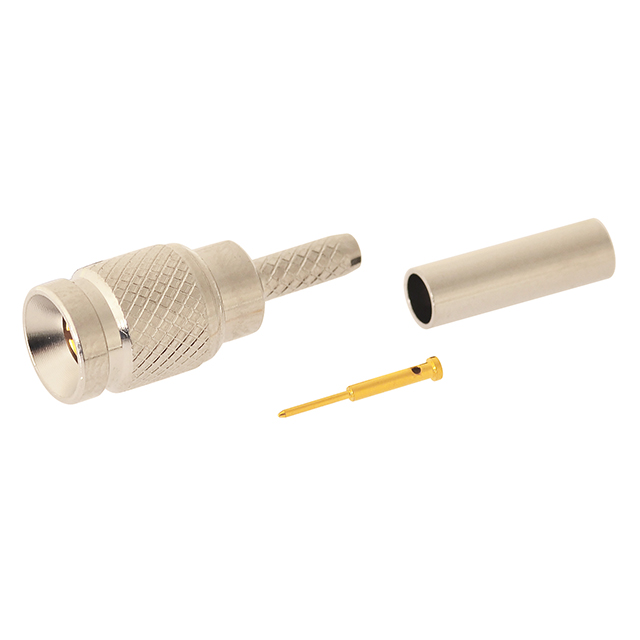

1.0/2.3 Male crimp type (RG174U)
gold-pin
Unit price (USD)
Quantity Price
100+ 1.1494
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Specifications

·Gender: Male
·Connector type: 1.0/2.3
·Impedance: 50Ω
·Body orientation: Straight
·Mouting type: Cable mount
·Frequency range: 0-4GHz
·Voltage rating: 250VAC
·Contact resistance: 6.0mΩ Max.
·Insulation resistance: 1000MΩ Min. at 500VDC
·Withstand voltage: 750VAC for 1 minute
