Electrical Characteristics
Specifications
·Gender: Female

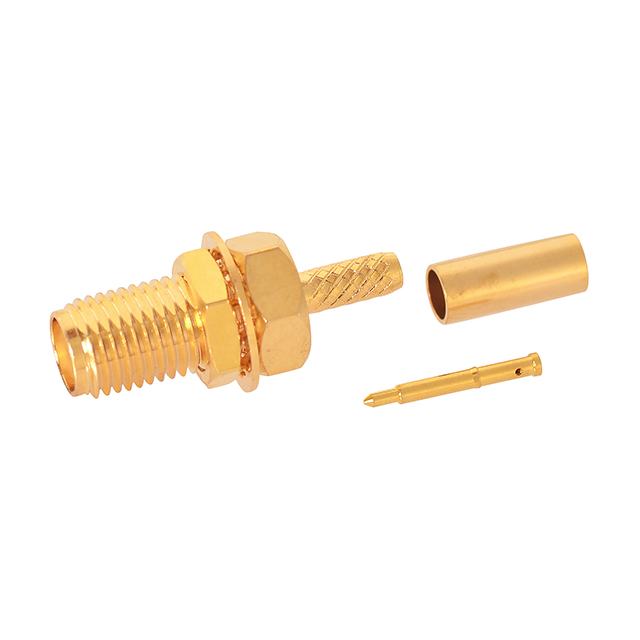

·Connector type: Reverse polarity SMA connector
·Mounting type: Cable mount
·Impedance: 50Ω
·Body orientation: Straight
·Frequency range: 0-18GHz
·Voltage rating: 500VAC
·Contact resistance: 3.0mΩ Max.
·Insulation resistance: 5000MΩ Min. at 500VDC
·Withstand voltage: 1000VAC for 1 minute
Materials
·Body: Brass, gold plated
·Insulator: Teflon
·Pin: Brass, gold plated
·Ferrule: Brass, gold plated
·Washer: Steel, gold plated
·Nut: Brass, gold plated
