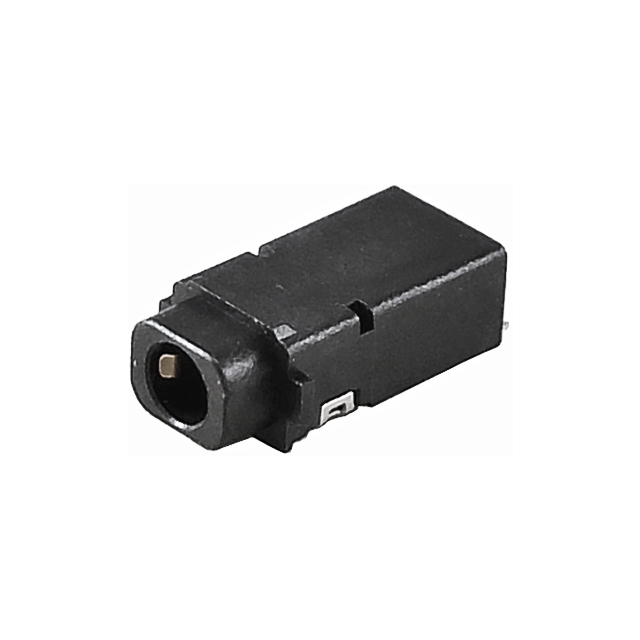

Phone Jack – 2.5 mm / 3.5 mm / 6.35 mm Socket
Phone jacks (female) for 2.5 mm, 3.5 mm, and 6.35 mm connectors are used in audio equipment, test panels, and measuring instruments. Available in panel-mount, PCB-mount, and surface-mount styles, they support TS, TRS, and TRRS connections. Variants may feature locking mechanisms or high-durability metal sleeves for professional setups, making them ideal for plug-in probes, signal generators, and modular lead systems.

Specifications

·Gender: Female
·No. of poles: 5
·Pin diameter: 3.5 mm
·Orientation: Right angle
·Mounting type: Surface mount
·Contact resistance: 30mΩ Max.
·Withstand voltage: 500VAC for 1 minute
·Durability: 5,000 Min. cycles
·Insetion force: 0.6KGF~2.0KGF
·Withdrawal force: 0.6KGF~2.0KGF
·Termination: Solder
.Waterproof: IP67

Materials

.Housing: PA9T UL94V-0, black
.Cover: PA9T UL94V-0, black
.Ring & tip spring: Copper 0.2t, MB:Ni gold flash
.Terminal: C2680 0.2t, MB:Ni gold flash
.Bond: Silicone
.Oval ring: Epoxy
