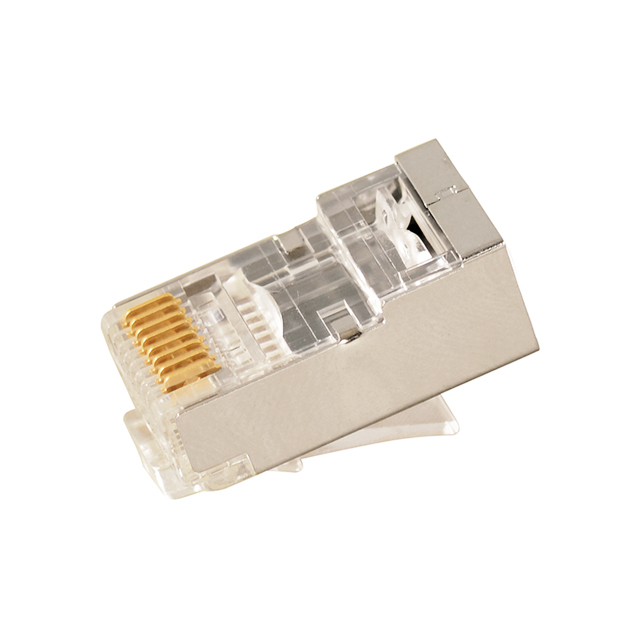

Modular shielded plug 8P8C (RJ45) for CAT.6 passing through type
3-prong contact blades
This item can't be ordered online, please send inquiry!!
Data Sheet
Electrical Characteristics


·Number of ways: 8P8C
·Connector type: Modular plug RJ45 passing through
·Current rating: 2A
·Voltage rating: 250VAC Max.
·Orientation: Straight
·Mounting type: Cable mount
·Contact resistance: 20mΩ Max. (after environmental testing)
·Insulation resistance: 100MΩ Min.
·Dielectric withstanding voltage: 1000VAC for 1 minute
·Durability: 200 Mating Cycles
·Cable-to-plug tensile strength: 20 Pound Min.
·Length: 21.49 mm
·Width: 11.68 mm


·Housing: Polycarbonate UL94-V0 or 94-V2
·Contact blade: Copper alloy
·Shielded shell: Copper alloy
·Plate: Gold
·Color: Transparent
·Usage: Suitable for stranded & solid wire 24AWG / 26 AWG (wire OD from Φ0.93~Φ1.04)
