Total: 9 Products

Product

Product Details
Price
Data Sheet
Remark
Specification

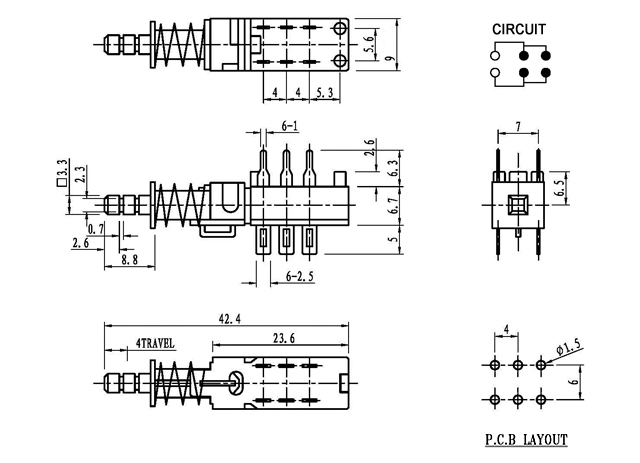

6P push switch (DPDT) on-on
250V 1A
Unit price (USD)
1000+
0.2411
Add
Enter Quantity to Check Lead Time
Circuit: 2P2T
Switch function: On-On
Rating: 1A 250VAC
Contact resistance: 50mΩ Max.
Insulation resistance: 100MΩ Min.

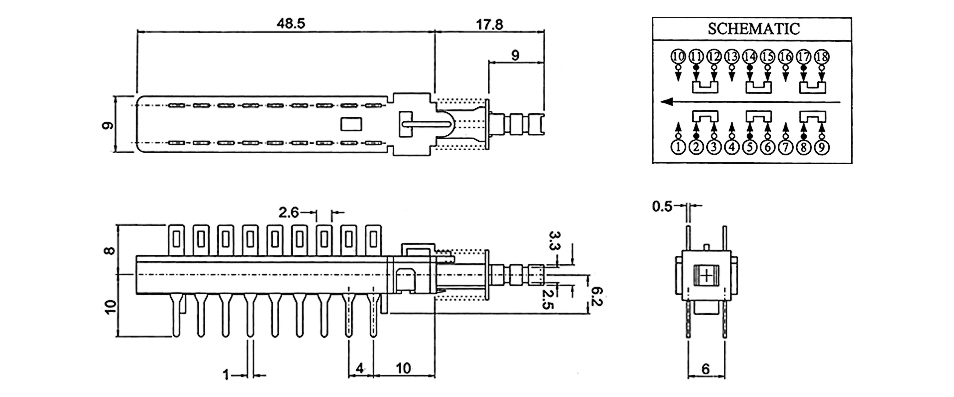

18P push switch (6P2T) on-on
250V 2A
Unit price (USD)
200+
0.5268
Add
Enter Quantity to Check Lead Time
Circuit: 6P2T
Switch function: On-On
Rating: 2A 250VAC
Contact resistance: 20mΩ Max.
Insulation resistance: 100MΩ Min.
Mini push switch 12V 0.1A
lock type
Unit price (USD)
1000+
0.2634
Add
Enter Quantity to Check Lead Time
Circuit: 2C-2P
Rating: 0.1A 12VDC
Timing: Non-shorting
Operating mode: Self-lock
Stroke: Full 1.7M/M, lock 1.0M/M
Mini push switch 12V 0.1A
Non lock type
Unit price (USD)
1000+
0.2634
Add
Enter Quantity to Check Lead Time
Circuit: 2C-2P
Rating: 0.1A 12VDC
Timing: Non-shorting
Operating mode: Non-lock
Stroke: Full 1.7M/M, lock 1.0M/M
Mini push switch 30V 0.1A
lock type
Unit price (USD)
1000+
0.1437
Add
Enter Quantity to Check Lead Time
Circuit: 2P2T
Rating: 0.1A 30VDC
Operating mode: Self-lock
Operating force: 150±80G/F
Mini push switch 160gf
Lock type
Unit price (USD)
1000+
0.1820
Add
Enter Quantity to Check Lead Time
Rating: 0.1 A 30VDC
Operating mode: Self-lock
Contact rssistsnce: 50mΩ Max.
Insulation resistance: 100MΩ Min.
Withstand voltaqe: 250VAC for 1 minute
Mini push switch 90gf
Non lock type
Unit price (USD)
500+
0.1437
Add
Enter Quantity to Check Lead Time
Rating: 0.1 A 30VDC
Operating mode: Non-lock
Contact rssistsnce: 50mΩ Max.
Insulation resistance: 100MΩ Min.
Withstand voltaqe: 250VAC for 1 minute
Mini push switch 160gf
Non lock & click
Unit price (USD)
500+
0.1820
Add
Enter Quantity to Check Lead Time
Rating: 0.1 A 30VDC
Operating mode: Non-lock and click
Contact rssistsnce: 50mΩ Max.
Insulation resistance: 100MΩ Min.
Withstand voltaqe: 250VAC for 1 minute

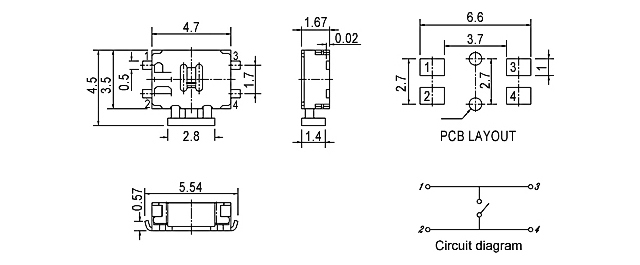

Side push switch 12V 0.05A
Unit price (USD)
3000+
0.1437
Add
Enter Quantity to Check Lead Time
Rating: 50mA 12VDC
Contact resistance: 100mΩ Max.
Insulation resistance: 100MΩ Min.
Dielectric strength: 250VAC for 1 minute
Travel: 0.3mm
