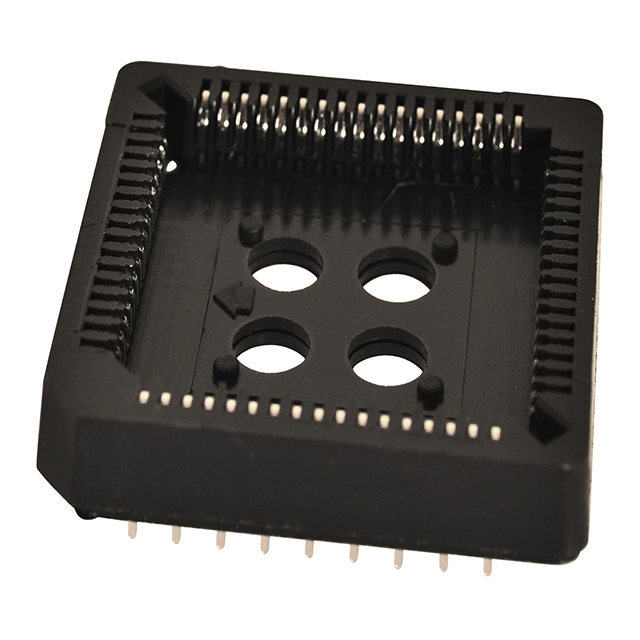

Electrical Characteristics
Specifications
·Pitch-mating: 1.27mm
·Pitch-post: 2.54mm
·Gender: Female
·No. of contacts: 68
·Current rating: 1A
·Orientation: Straight
·Termination: Solder
·Mounting type: Through hole
·Contact resistance: 30mΩ Max. at 100mA DC
·Withstand voltage: 500VAC for 1 minute
·Operating temperature: -55°C to +85°C
Materials
·Insulator: PBT & 30% glass fiber, UL94V-0
·Contact: Phosphor bronze
