Electrical Characteristics
Overview

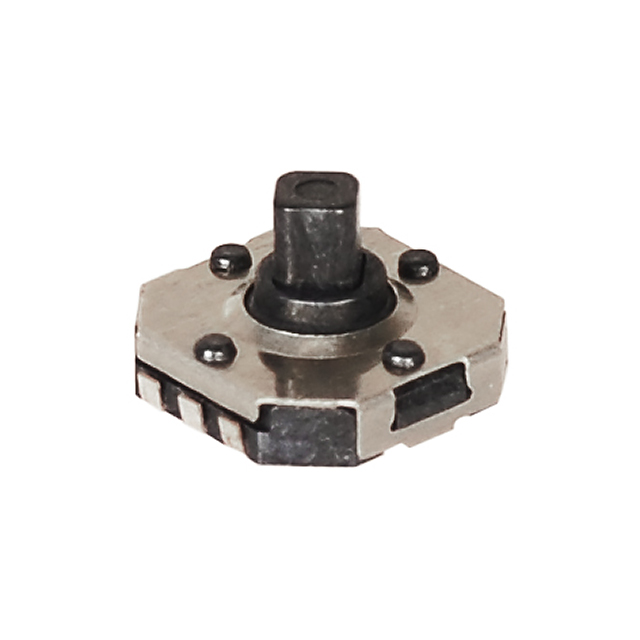

Tact Switch – Momentary Tactile Control
Tact switches provide precise, tactile feedback for momentary control. Used in remote controls, keypads, and medical devices, they feature low-profile designs, varied actuation forces, and through-hole or SMD options.
Features
·7.4 x 7.7mm
·Variety of height options
·Reflow solderable
Specifications
·Rating: 50mA 12VDC
·Contact resistance: 100mΩ Max.
·Insulation resistance: 100MΩ Min. at 100VDC
·Dielectric strength: 250VAC for 1 minute
·Travel: 0.15mm
·Operation force: 320gf
·Operation temperature: -25°C to +70°C
·Storage temperature: -40°C to +80°C
·Electrical life: 100,000 cycles
Applications
·Medical device
·Consumer electronics
·Security device
