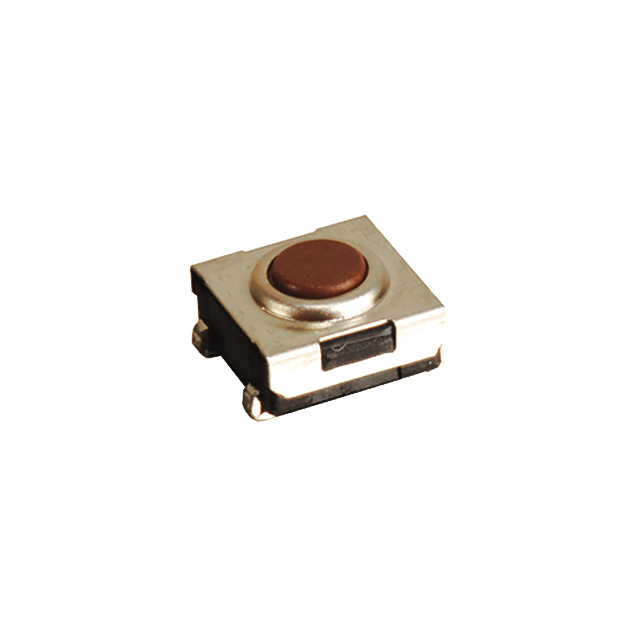

Tact switch brown 160gf
Can reach to IP67
Height:3.1mm
12V 0.05A
Unit price (USD)
Quantity Price
750+ 0.1394
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Overview

Tact Switch – Momentary Tactile Control
Tact switches provide precise, tactile feedback for momentary control. Used in remote controls, keypads, and medical devices, they feature low-profile designs, varied actuation forces, and through-hole or SMD options.

Features

·Sealed
·Reflow solderable
·Dust proof with high reliability

Specifications

·Rating: 50mA 12VDC
·Contact resistance: 100mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 250VAC for 1 minute
·Operation force: 160±50gf
·Travel: 0.25mm
·Operation temperature: -25°C to +70°C
·Storage temperature: -30°C to +80°C
·Protective grade: IP67
·Electrical life: 100,000 cycles Min.

Applications

·Audio
·OA equipment
·Instrumentation
·Communication
·White goods
