Overview

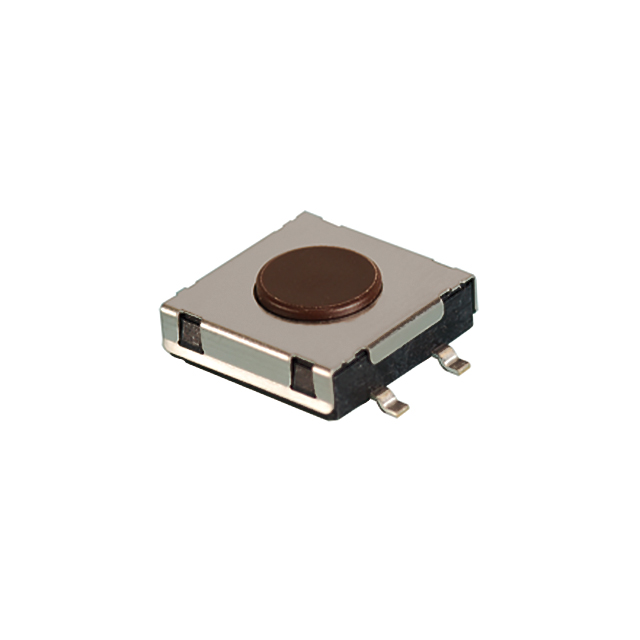

Tact Switch – Momentary Tactile Control
Tact switches provide precise, tactile feedback for momentary control. Used in remote controls, keypads, and medical devices, they feature low-profile designs, varied actuation forces, and through-hole or SMD options.

Features

·Sealed
·SMD type

Specifications

·Rating: 50mA 24VDC
·Contact resistance: 100mΩ Max.
·Insulation resistance: 100MΩ Min. at 250VDC
·Dielectric strength: 250VAC for 1 minute
·Operation force: 160±50gf
·Travel: 0.35±0.15mm
·Operation temperature: -40°C to +80°C
·Storage temperature: -40°C to +85°C
·Protective grade: IP67
·Electrical life: 1,000,000 cycles Min.

Applications

·Audio
·OA equipment
·Instrumentation
·Communication
·White goods
