Result per page
Total: 13 Products

Product

Product Details
Price
Data Sheet
Remark
Specification
2P metal pushbutton switch
36VDC 2A (SPST) off-(on)
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Circuit: SPST
Switch function: Momentary / NO / Off-(On)
Rating: 2A 36VDC
Thread: M12x0.75
Contact resistance: 50mΩ Max.
Insulation resistance: 5OMΩ Min.
2P illuminated metal pushbutton switch
W/LED (SPDT) off-(on)
  • Item No.：B169HD
  • Voltage
    Color
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Circuit: SPST
Switch function: Momentary / NO / Off-(On)
Rating: 2A 36VDC
Thread: M12x0.75
Contact resistance: 50mΩ Max.
Insulation resistance: 5OMΩ Min.
2P illuminated metal pushbutton switch
W/LED (SPDT) off-(on)
  • Item No.：B169MA
  • Voltage
    Color
Unit price (USD)
150+
3.1609
Add
Enter Quantity to Check Lead Time
Circuit: SPDT
Switch function: Momentary / NO / Off-(On)
Rating: 2A 36VDC
Contact resistance: 50mΩ Max.
Insulation resistance: 1OOOMΩ Min.
2P metal pushbutton switch
36VDC 2A (SPST) off-(on)
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Circuit: SPST
Switch function: Momentary / NO / Off-(On)
Rating: 2A 36VDC
Thread: M16x1.0
Contact resistance: 50mΩ Max.
Insulation resistance: 5OMΩ Min.
2P metal pushbutton switch
36VDC 2A (SPST) off-(on)
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Circuit: SPST
Switch function: Momentary / NO / Off-(On)
Rating: 2A 36VDC
Thread: M16x1.0
Contact resistance: 50mΩ Max.
Insulation resistance: 5OMΩ Min.
2P illuminated metal pushbutton switch
W/LED (SPST) off-(on)
  • Item No.：B169NC
  • Voltage
    Color
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Circuit: SPST
Switch function: Momentary / NO / Off-(On)
Rating: 2A 36VDC
Thread: M16x1.0
Contact resistance: 50mΩ Max.
Insulation resistance: 5OMΩ Min.
2P illuminated metal pushbutton switch
W/LED (SPDT) off-(on)
  • Item No.：B169ND
  • Voltage
    Color
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Circuit: SPST
Switch function: Momentary / NO / Off-(On)
Rating: 2A 36VDC
Thread: M16x1.0
Contact resistance: 50mΩ Max.
Insulation resistance: 5OMΩ Min.

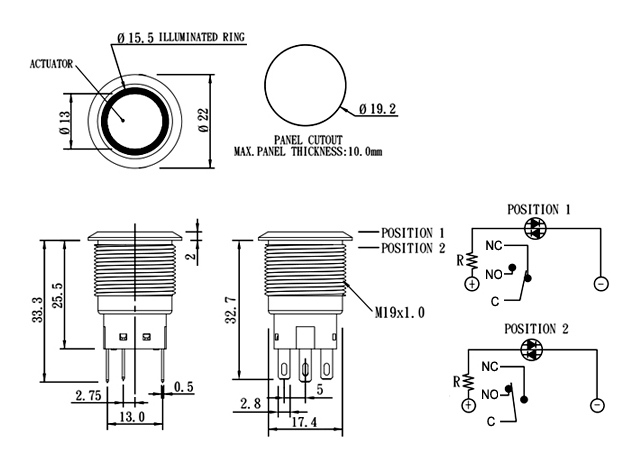

3P illuminated metal pushbutton switch
W/LED (SPDT) on-(on)
  • Item No.：B169TC
  • Voltage
    Color
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Circuit: SPDT
Switch function: Momentary / On-(On)
Rating: 3A 250VAC
Thread: M19x1.0
Contact resistance: 50mΩ Max.
Insulation resistance: 5OMΩ Min.
3P illuminated metal pushbutton switch
W/LED (SPDT) on-(on)
  • Item No.：B169TD
  • Voltage
    Color
Unit price (USD)
120+
5.6513
Add
Enter Quantity to Check Lead Time
Circuit: SPDT
Switch function: On-(On)
Rating: 5A 250VAC
Contact resistance: 50mΩ Max.
Insulation resistance: 1000MΩ Min.

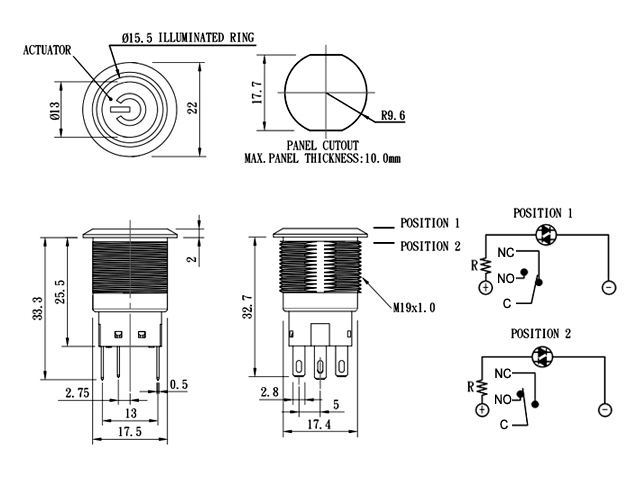

3P illuminated metal pushbutton switch
W/LED (SPDT) on-(on)
  • Item No.：B169TE
  • Voltage
    Color
Unit price (USD)
120+
5.0048
Add
Enter Quantity to Check Lead Time
Circuit: SPDT
Switch function: On-(On)
Rating: 5A 250VAC
Contact resistance: 50mΩ Max.
Insulation resistance: 1000MΩ Min.

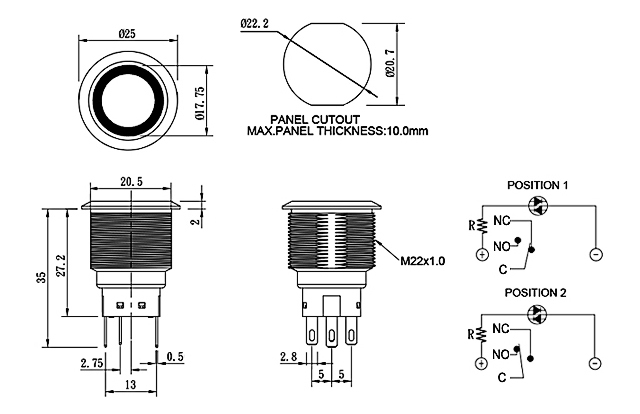

3P illuminated metal pushbutton switch
W/LED (SPDT) on-(on)
  • Item No.：B169WD
  • Voltage
    Color
Unit price (USD)
100+
5.5316
Add
Enter Quantity to Check Lead Time
Circuit: SPDT
Switch function: On-(On)
Rating: Ith 5A 250VAC
Contact resistance: 50mΩ Max.
Insulation resistance: 1000MΩ Min.

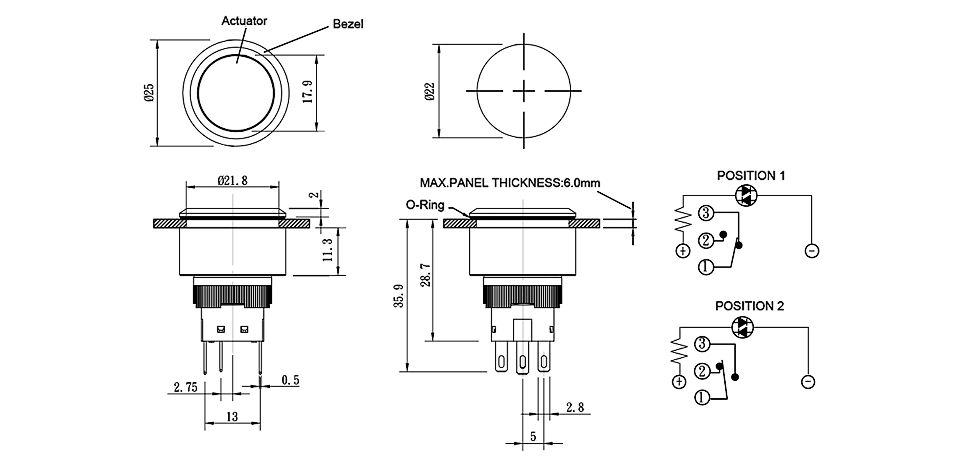

3P Illuminated pushbutton switch
with LED 250VAC 5A (SPDT) on-(on)
  • Item No.：B169WF
  • Voltage
    Color
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Circuit: SPDT
Rating: 5A 250VAC
Switch function: Momentary / On-(On)
Contact resistance: 50mΩ Max.
Insulation resistance: 1000MΩ Min.

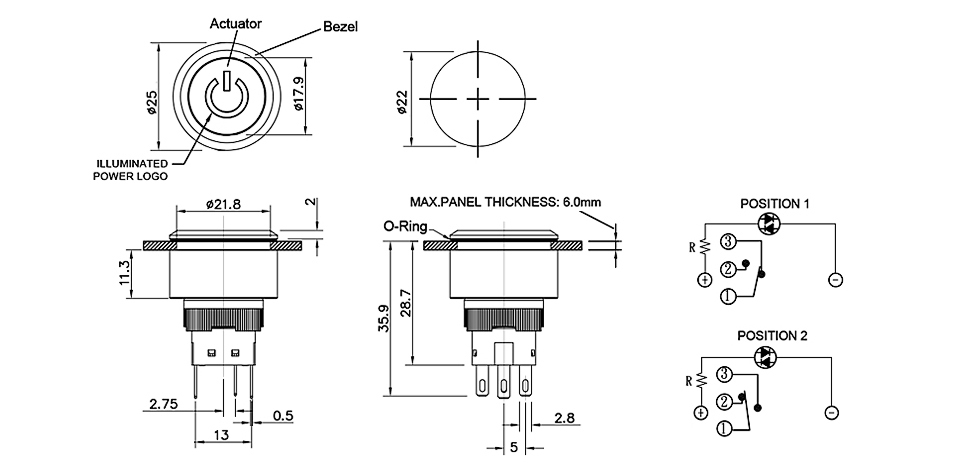

3P Illuminated pushbutton switch
with LED 250VAC 5A (SPDT) on-(on)
  • Item No.：B169WG
  • Voltage
    Color
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Circuit: SPDT
Rating: 5A 250VAC
Switch function: Momentary / On-(On)
Contact resistance: 50mΩ Max.
Insulation resistance: 1000MΩ Min.
