Total: 13 Products

Product

Product Details
Price
Data Sheet
Remark
Specification

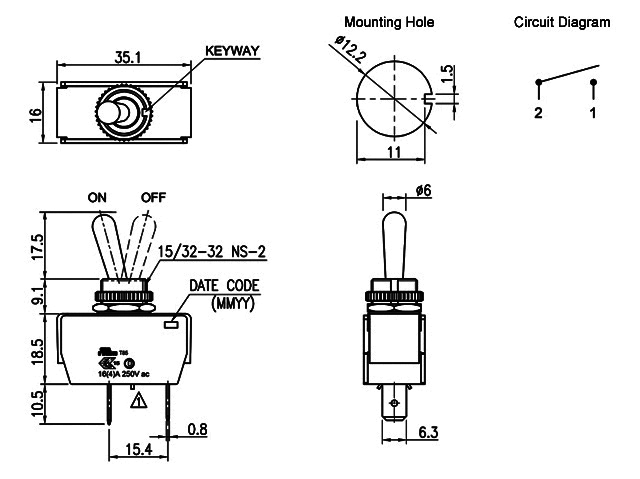

2P waterproof toggle switch (SPST)
on-off 250V 16A W/approval
Unit price (USD)
500+
1.4368
Add
Enter Quantity to Check Lead Time
Circuit: SPST
Switch function: On-Off
Rating: 16A 250VAC
Contact resistance: 50mΩ Max.
Insulation resistance: lOOMΩ Min.

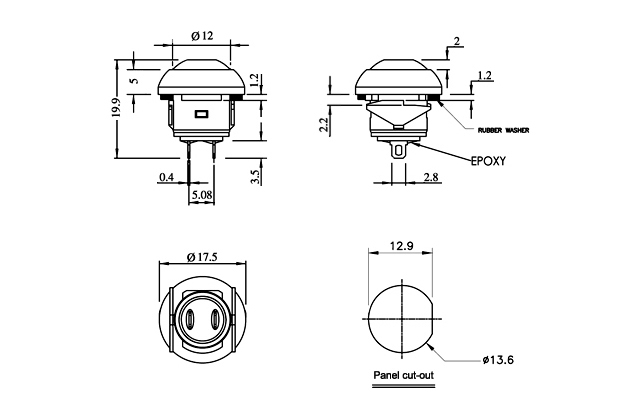

2P waterproof pushbutton switch (SPST)
Open type 125V 125mA
  • Item No.：B1310A
  • Color
Unit price (USD)
500+
1.0431
Add
Enter Quantity to Check Lead Time
Circuit: SPST
Switch function: Off-(On)
Rating: 400mA 32VAC / 100mA 50VDC / 125mA 125VAC
Contact resistance: 50mΩ Max.
Insulation resistance: 1GΩ Min.

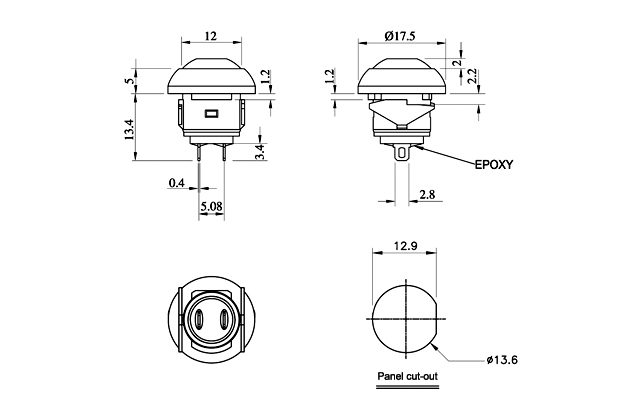

2P waterproof pushbutton switch
(SPST) Close type 125V 125mA
  • Item No.：B1310B
  • Color
Unit price (USD)
500+
1.0431
Add
Enter Quantity to Check Lead Time
Circuit: SPST
Switch function: Push off
Rating: 400mA 32VAC / 100mA 50VDC / 125mA 125VAC
Contact resistance: 50mΩ Max.
Insulation resistance: 1GΩ Min.
2P waterproof pushbutton switch (SPST)
Open type 125V 125mA
  • Item No.：B1313A
  • Color
Unit price (USD)
1+ 5+ 25+ 50+
3.7552 2.1458 1.2517 1.0431
Add
Enter Quantity to Check Lead Time
Function: Off-(On)
Current rating: 400mA @ 32VAC
Voltage rating: 32VAC
Mounting type: Panel mount
IP rating:67

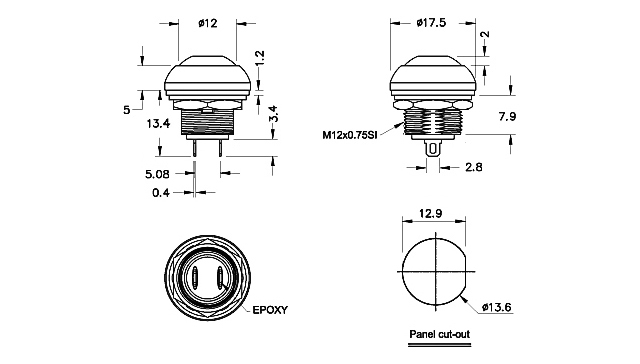

2P waterproof pushbutton switch (SPST)
Close type 125V 125mA
  • Item No.：B1313B
  • Color
Unit price (USD)
500+
1.0431
Add
Enter Quantity to Check Lead Time
Circuit: SPST
Switch function: Push off
Rating: 400mA 32VAC / 100mA 50VDC / 125mA 125VAC
Contact resistance: 50mΩ Max.
Insulation resistance: 1GΩ Min.

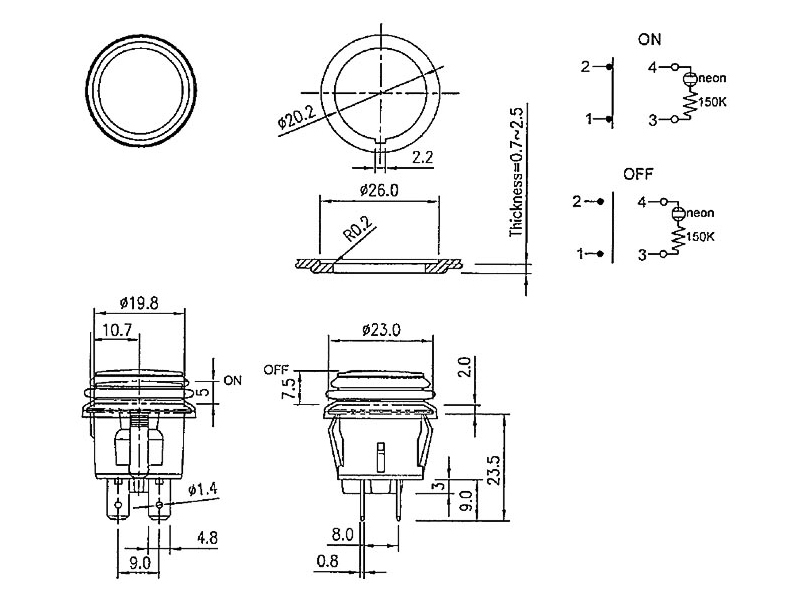

4P waterproof illuminated
pushbutton switch (SPST) on-off
Unit price (USD)
1000+
1.6762
Add
Enter Quantity to Check Lead Time
Circuit: SPST
Switch function: On-Off
Rating: 10A 125VAC / 6A 250VAC
Contact resistance: 50mΩ Max.
Insulation resistance: 100MΩ Min.

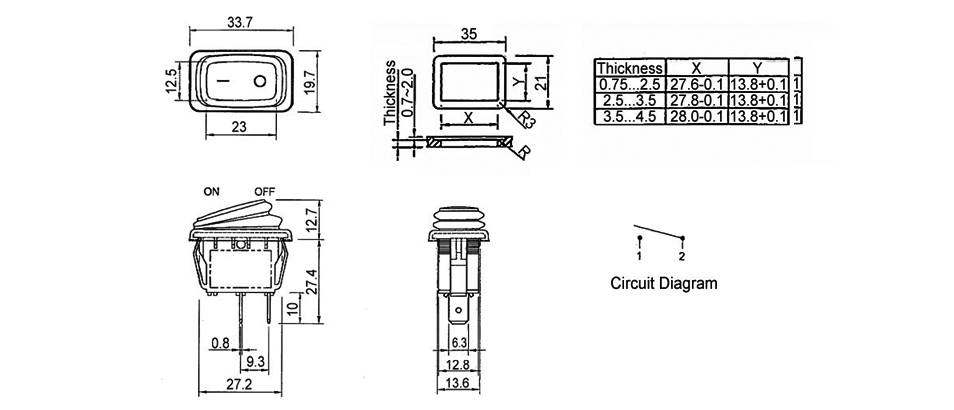

2P waterproof rocker switch (SPST)
on-off 125V 20A (250V 16A)
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Circuit: SPST
Switch function: On-Off
Rating: 20A 125VAC / 16A 250VAC
Contact resistance: 50mΩ Max.
Insulation resistance: 100MΩ Min.
3P waterproof illuminated rocker switch
(SPST) on-off W/LED
Unit price (USD)
1000+
1.6762
Add
Enter Quantity to Check Lead Time
Circuit: SPST
Switch function: On-Off
Rating: 16A 125VAC / 10A 250VAC
Contact resistance: 50mΩ Max.
Insulation resistance: l00MΩ Min.

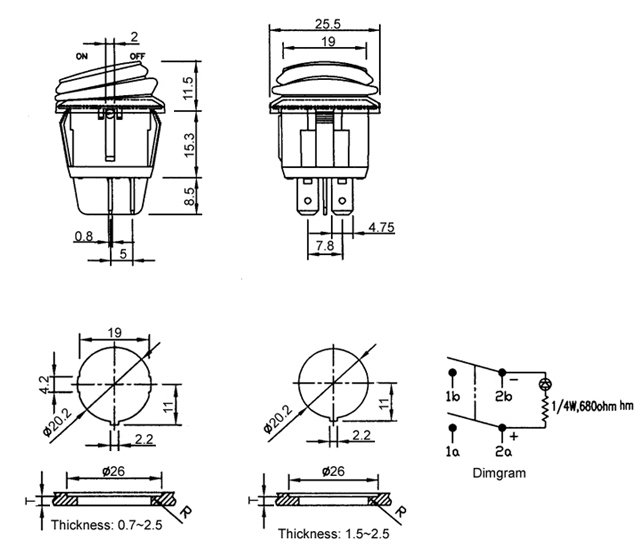

4P waterproof illuminated
rocker switch (DPST) on-off
  • Item No.：B1322
  • Color
Unit price (USD)
2000+
1.2452
Add
Enter Quantity to Check Lead Time
Circuit: DPST
Switch function: On-Off
Rating: 20A 14VDC / 16A 125VAC / 10A 250VAC
Contact resistance: 50mΩ Max.
Insulation resistance: 100MΩ Min.
3P waterproof illuminated rocker
switch (SPST) on-off red
Unit price (USD)
1000+
1.3410
Add
Enter Quantity to Check Lead Time
Circuit: SPST
Switch function: On-Off
Rating: 20A 125VAC / 16A 250VAC
Contact resistance: 50mΩ Max.
Insulation resistance: 100MΩ Min.
7P waterproof illuminated rocker switch
(DPDT) on-off-on W/LED
Unit price (USD)
1000+
2.8736
Add
Enter Quantity to Check Lead Time
Circuit: DPDT
Switch function: On-Off-On
Rating: 10A 250VAC
Contact resistance: 50mΩ Max.
Insulation resistance: 100MΩ Min.
4P waterproof illuminated rocker switch
(SPDT) on-off-on W/approval
Unit price (USD)
1000+
3.3525
Add
Enter Quantity to Check Lead Time
Circuit: SPDT
Switch function: On-Off-On
Rating: 20A 125VAC / 10A 250VAC / 16A 125VAC / 10A 277VAC
Contact resistance: 50mΩ Max.
Insulation resistance: 100MΩ Min.

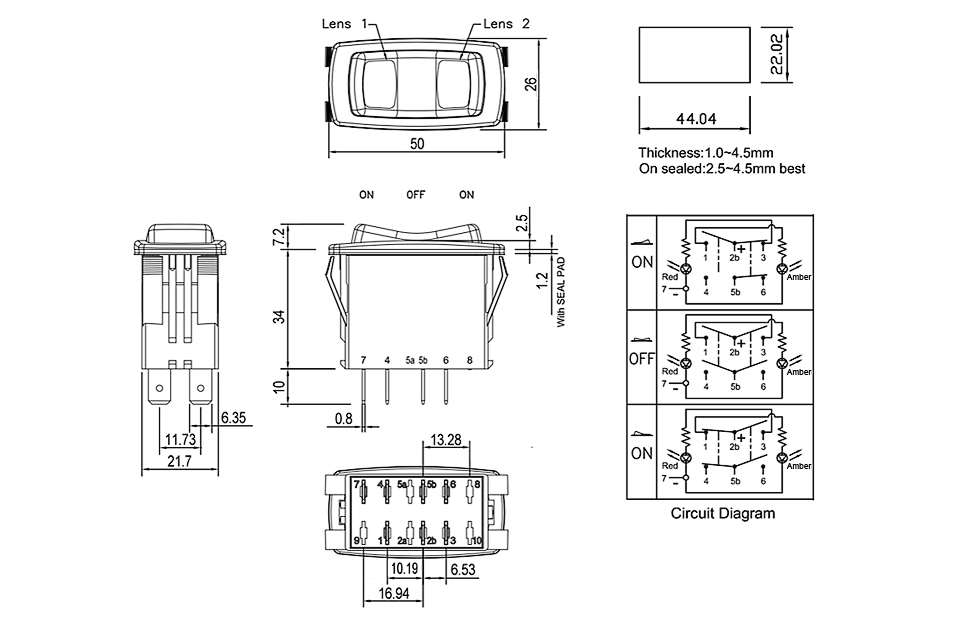

6P waterproof illuminated rocker switch
(DPDT) on-off-on with red & amber LED
This item can't be ordered online, please send inquiry!!
Send Inquiry
-
Circuit: DPDT
Switch function: On-Off-On
Rating: 16A 125VAC / 16A 250VAC
Contact resistance: 50mΩ Max.
Insulation resistance: 100MΩ Min.
